Inner Mongolia Erlianhaote 750t/d fluorite ore plant
Inner Mongolia Erlianhaote 750t/d fluorite ore plant
For the ore sample delivered by the client, the Ludong mining machine carried out an optional experimental task, and the main object of the ore dressing experiment was fluorite.

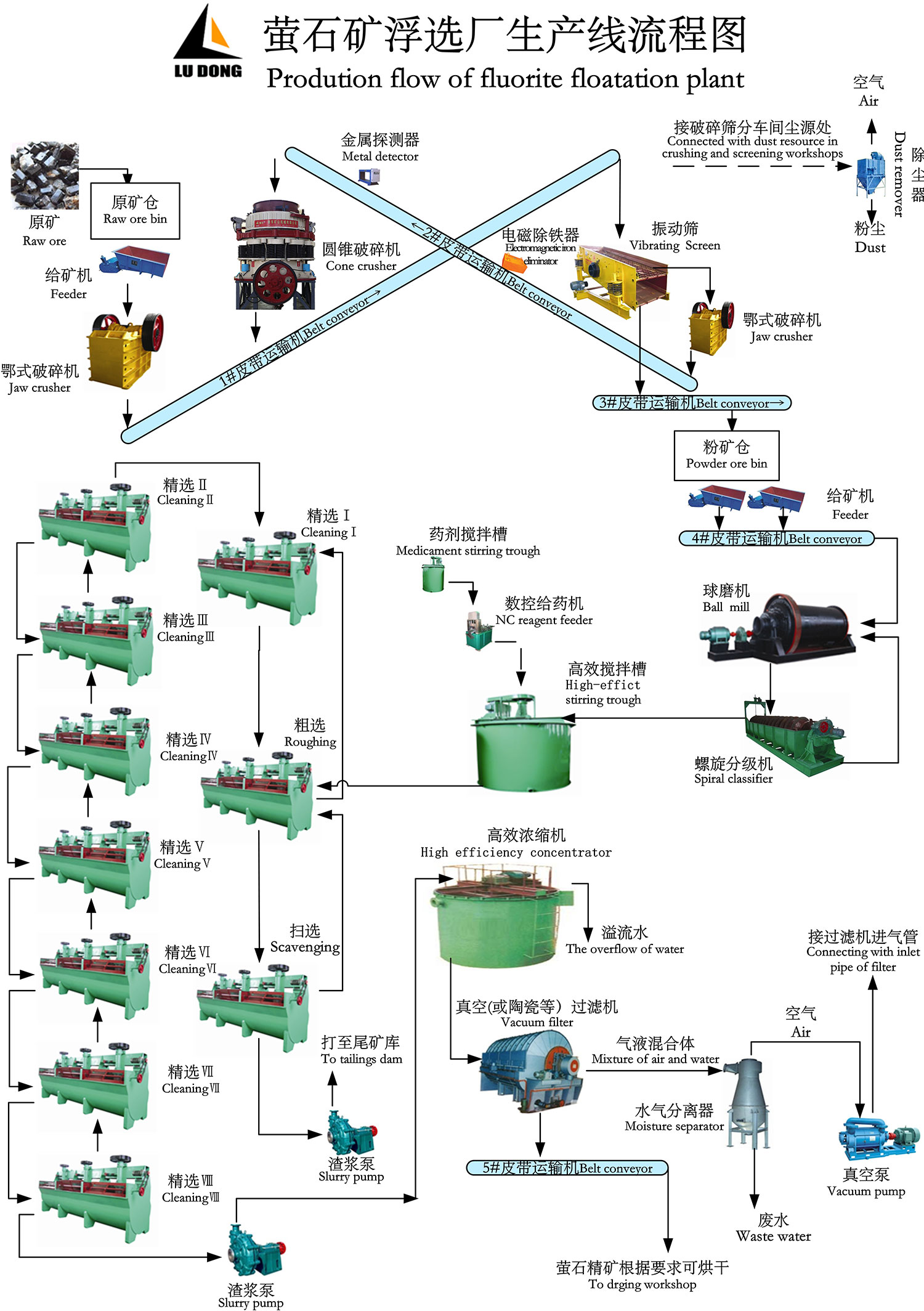

The first step: crushing and screening
One section uses a jaw crusher; the second section uses a cone crusher. A vibrating screen is used in the screening stage.
Step 2: Grinding classification
Through the ball mill, a section of grinding is carried out, and the discharged mineral material flows into the high-grade spiral classifier; the classifier is returned to the ball mill and re-grinded, and the classifier overflows from the flow to the flotation operation.
The third step: flotation equipment and tailings dehydration

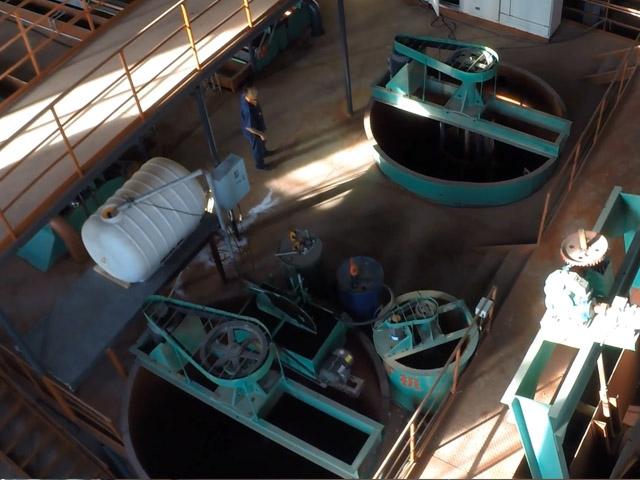

The classifier overflows from the high-efficiency stirring tank and stirs the slurry to float. The tailings after flotation and coarse sweeping are used as the final tailings slurry pump to enter the cyclone component coarse ore and fine ore. The coarse ore flows to the dewatering screen and the dewatering screen is dehydrated to the tailings pond.
The fine ore flows from the concentrator to the concentrator. After the concentrator is concentrated, it is sent to the filter press for dehydration. After dehydration, it is sent to the tailings pond.
The fourth step: concentrate dehydration
Select the concentrate from the previous stage as the final concentrate.

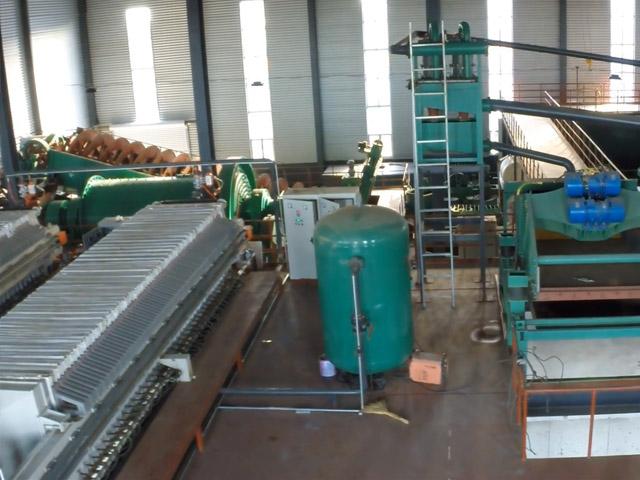

The concentrate slurry is first pumped to the defoaming buffer tank buffer by the slurry pump, and then dewatered by the double-stage pump to the filter press. After dewatering, the filter cake is transported to the concentrate storage tank for storage and drying by the belt conveyor.
Conclusion
The project provides one-stop tracking service from the beneficiation experiment, mine design, equipment manufacturing, installation and commissioning to the training of workers to the standard production. Ludong has always been committed to providing customers with more professional, more perfect and more efficient mineral processing equipment and plant selection solutions!
Equipment required for process
|
|
|
|
|
spiral classifier |

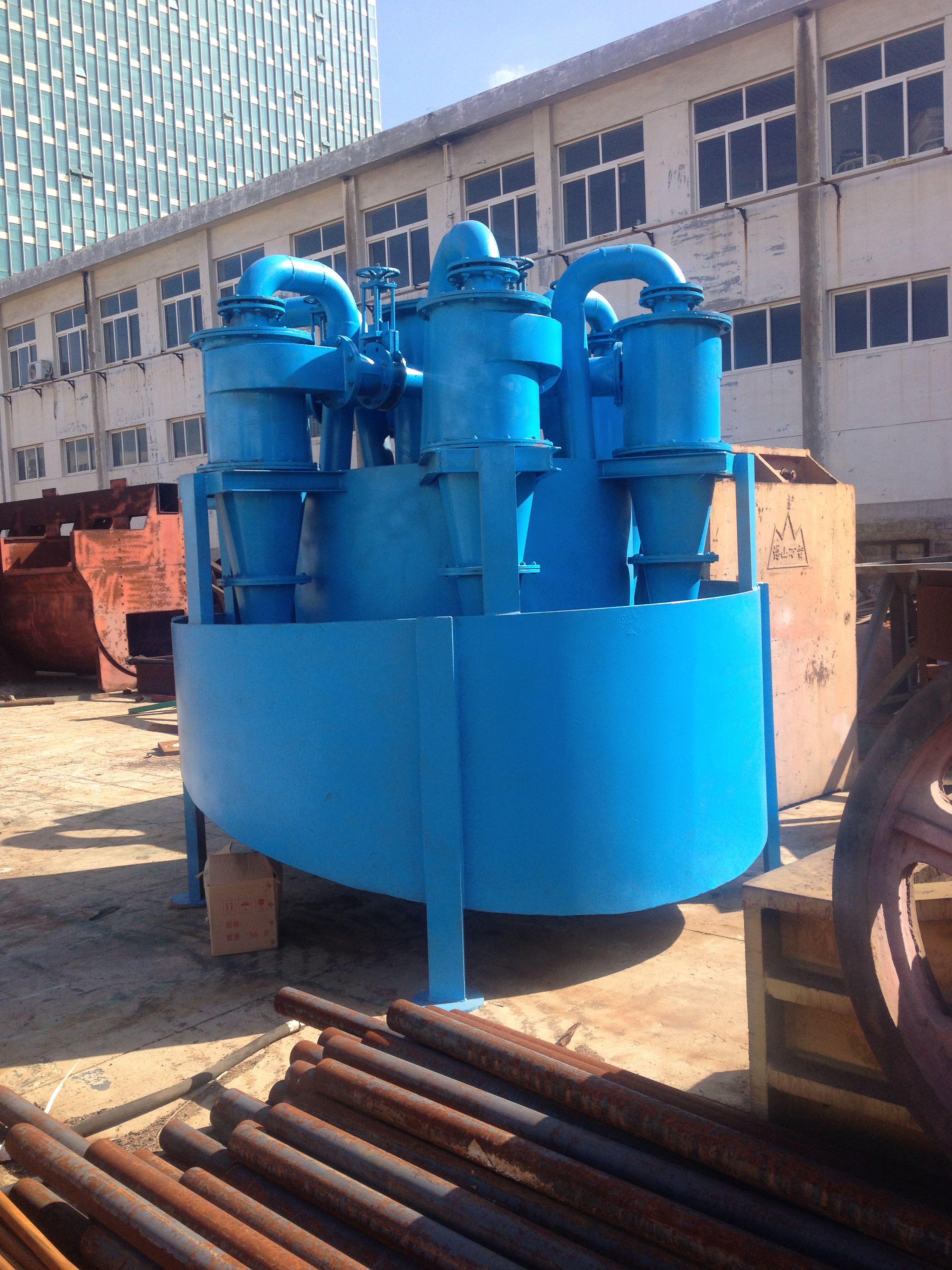

Hydrocyclone unit |

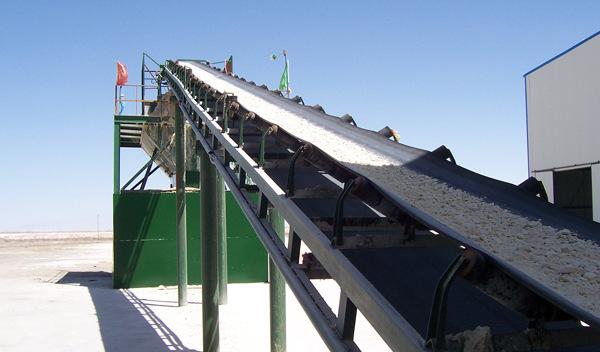

Belt conveyor |
Dewatering screen |
|
|
|
|
|

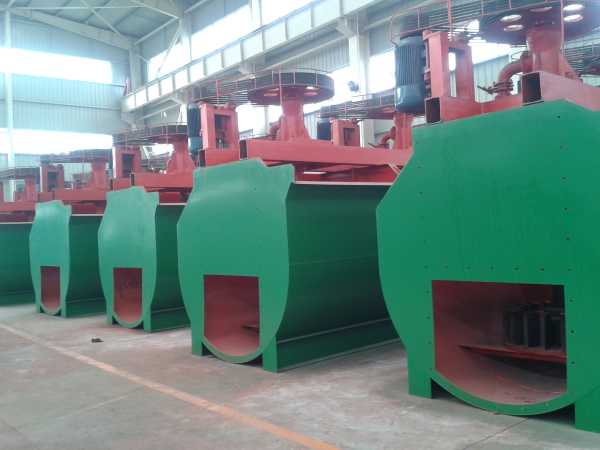

The flotation machine |
Ball mill |
Thickener |
Plate filter press |
