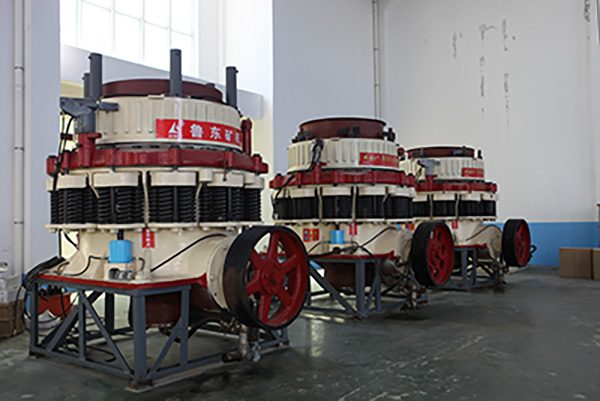

Cone crusher
Cone crusher
Advantage characteristics:
1. High performance and good product particle size composition: The principle of laminating crushing is adopted, the needle-like stones are reduced, and the particle size is more uniform.
2. Good stability and high reliability. After the iron is passed through the crushing chamber, the original discharge opening can be quickly restored. The equipment is guaranteed to be rugged and reliable.
3, easy to maintain, easy to operate, low production costs
4, split lubrication: multi-point control of the independent thin oil lubrication system, can ensure the dual protection of the bearing lubrication of this model, and can achieve automatic safety protection of the whole machine.
working principle:
When the cone crusher is working, the eccentric sleeve is driven by the motor through the V-belt, the large pulley, the transmission shaft, the bevel gear, and the large-vertical gear. The broken cone axis is rotated under the eccentric bushing to make the broken wall The surface sometimes leaves the surface of the rolling wall, so that the material is continuously crushed by impact, extrusion and bending in the annular crushing cavity composed of the fixed cone and the moving cone. After multiple extrusions, impacts and bending, the material is broken to the required particle size and discharged through the lower part.
Technical Parameters:
|
Spring cone crusher technical parameter table |
|||||||
|
型號 |
破碎錘直徑（mm） |
給料口尺寸（mm） |
最大給料粒度（mm） |
排礦口調(diào)整范圍（mm） |
電機功率（kw） |
生產(chǎn)能力（t/h） |
機重 （不含電機）（kg） |
|
Model |
Diameter of erushing cone |
Inlet dimensions |
Max feed Particle size |
Adjusting range of discharging outler |
Motor power |
Capacity |
Weight |
|
PYB-900 |
900 |
135 |
115 |
15-50 |
55 |
50-90 |
11200 |
|
PYB-1200 |
1200 |
170 |
145 |
20-30 |
110 |
110-168 |
24700 |
|
PYB-1750 |
1750 |
250 |
215 |
25-60 |
155 |
280-480 |
50300 |
|
PYB-2100 |
2100 |
350 |
300 |
30-60 |
280 |
500-800 |
71200 |
|
PYB-2200 |
2200 |
350 |
300 |
30-60 |
280 |
500-1000 |
80000 |
|
PYB-900 |
900 |
70 |
600 |
5-20 |
55 |
20-65 |
11200 |
|
PYZ-1200 |
1200 |
115 |
100 |
8-25 |
110 |
42-135 |
25000 |
|
PYZ-1750 |
1750 |
215 |
180 |
10-30 |
155 |
115-320 |
50300 |
|
PYZ-2200 |
2200 |
175 |
230 |
10-30 |
280 |
200-580 |
80000 |
|
PYD-900 |
900 |
50 |
40 |
3-13 |
55 |
15-50 |
11300 |
|
PYD-1200 |
1200 |
60 |
50 |
3-15 |
110 |
18-105 |
25300 |
|
PYD-1750 |
1750 |
100 |
85 |
5-15 |
155 |
75-350 |
50500 |
|
PYD-2200 |
2200 |
130 |
100 |
5-15 |
280 |
125-350 |
81400 |
Case:
