Plate and frame filter press
Plate and frame filter press
Advantage characteristics:
1. The energy consumption is relatively low, and the electricity consumption is relatively small.
2, the working environment is relatively good, the area is not large, generally 10 to 15 square meters.
3. The filtered mud cake is relatively dry and has low moisture content.
4. When the sewage contains a small amount of sludge, the separation effect is better, the treatment volume is hit, and the cost is small.
5. No other auxiliary equipment is needed.

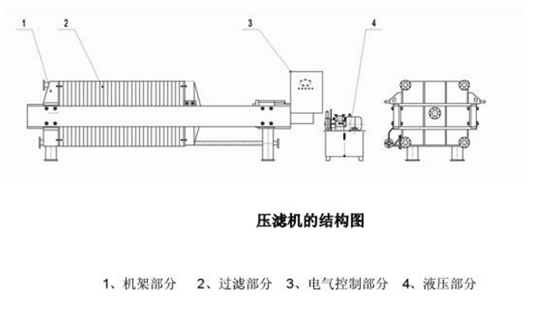

working principle:
Filtration method: The flow of the filtrate is clearly divided into flow filtration and dark flow filtration. For the clear flow filtration, a water nozzle is arranged on the lower liquid outlet of each filter plate, and the filtrate flows out intuitively from the water nozzle. Under the dark flow filtration, a liquid outlet hole is arranged below each filter plate, and the liquid outlet holes of the plurality of filter plates are connected into one liquid outlet passage, which is discharged by a pipe connected by the liquid outlet hole below the thrust plate.
Washing method: When the filter cake needs to be washed, it sometimes flows in one-way washing and two-way washing, undercurrent one-way washing and two-way washing.
Technical Parameters:
|
model |
Filtration area㎡ |
Number of filter chambers |
Filter plate specifications |
Filter thickness mm |
Filter chamber volume m3 |
Filtration pressure Mpa |
Foot center mm |
Dimensions (length × width × height) mm |
Motor power kw |
Weight kg |
|
AZ800U |
20 |
20 |
800×800×55 |
25 |
0.24 |
0.5 |
2265 |
3215×1320×1160 |
2.2 |
2073 |
|
AZ800U |
30 |
30 |
|
|
0.37 |
0.8 |
2815 |
3765×1320×1160 |
|
3090 |
|
AZ800U |
40 |
40 |
|
|
0.49 |
0.8 |
3365 |
4315×1320×1160 |
|
3380 |
|
AZ800U |
50 |
50 |
|
|
0.62 |
1 |
3915 |
4865×1320×1160 |
|
3090 |
|
AZ800U |
60 |
60 |
|
|
0.74 |
|
4465 |
5415×1320×1160 |
|
4070 |
|
AZ800U |
70 |
70 |
|
|
0.87 |
1.6 |
5015 |
5965×1320×1160 |
|
4360 |
|
AZ800U |
80 |
80 |
|
|
1 |
|
5565 |
6515×1320×1160 |
|
4700 |
|
AZ1000U |
100 |
62 |
1000×1000×60 |
30 |
1.48 |
0.5-1.6 |
5020 |
6110×1460×1360 |
3 |
6200 |
|
AZ1000U |
120 |
75 |
|
|
1.8 |
|
5800 |
6890×1460×1360 |
|
6710 |
|
AZ1250U |
150 |
58 |
1250×1250×65 |
|
2.26 |
|
5390 |
6920×1850×1620 |
|
11800 |
|
AZ1250U |
180 |
69 |
|
|
2.7 |
|
6100 |
7630×1850×1620 |
|
12700 |
|
AZ1250U |
200 |
79 |
|
|
3.02 |
|
6620 |
8150×1850×1620 |
|
13300 |
|
AZ1250U |
220 |
84 |
|
|
3.29 |
|
7080 |
8610×1850×1620 |
|
13900 |
|
AZ1250U |
250 |
95 |
|
|
3.73 |
|
7290 |
9320×1850×1620 |
|
14800 |
|
AZ1500U |
300 |
77 |
1500×1500×70 |
32 |
4.76 |
0.7-1.6 |
7450 |
9100×1960×1780 |
5.5 |
27000 |
|
AZ1500U |
320 |
83 |
|
|
5.14 |
|
7870 |
9520×1960×1780 |
|
27690 |
|
AZ1500U |
340 |
88 |
|
|
5.45 |
|
8220 |
9870×1960×1780 |
|
28380 |
|
AZ1500U |
350 |
90 |
1500×1500×70 |
|
5.58 |
|
8360 |
10010×1960×1780 |
|
28730 |
|
AZ1500U |
380 |
98 |
|
|
6.08 |
|
8920 |
10570×1960×1780 |
|
29760 |
|
AZ1500U |
400 |
103 |
|
|
6.39 |
|
9270 |
10920×1960×1780 |
|
30450 |
|
AZ1500U |
450 |
116 |
|
|
7.21 |
|
10180 |
11830×1960×1780 |
|
32170 |
|
AZ1500U |
500 |
128 |
|
|
7.96 |
|
11020 |
12670×1960×1780 |
|
33890 |

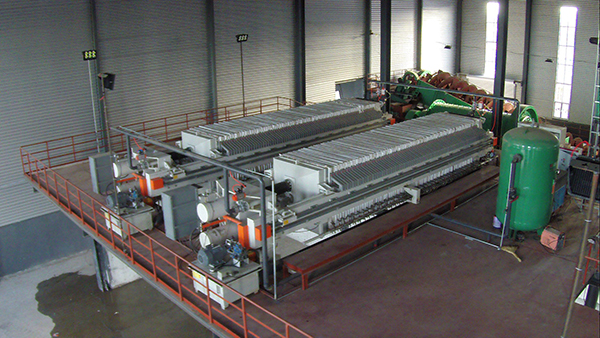

Case picture
