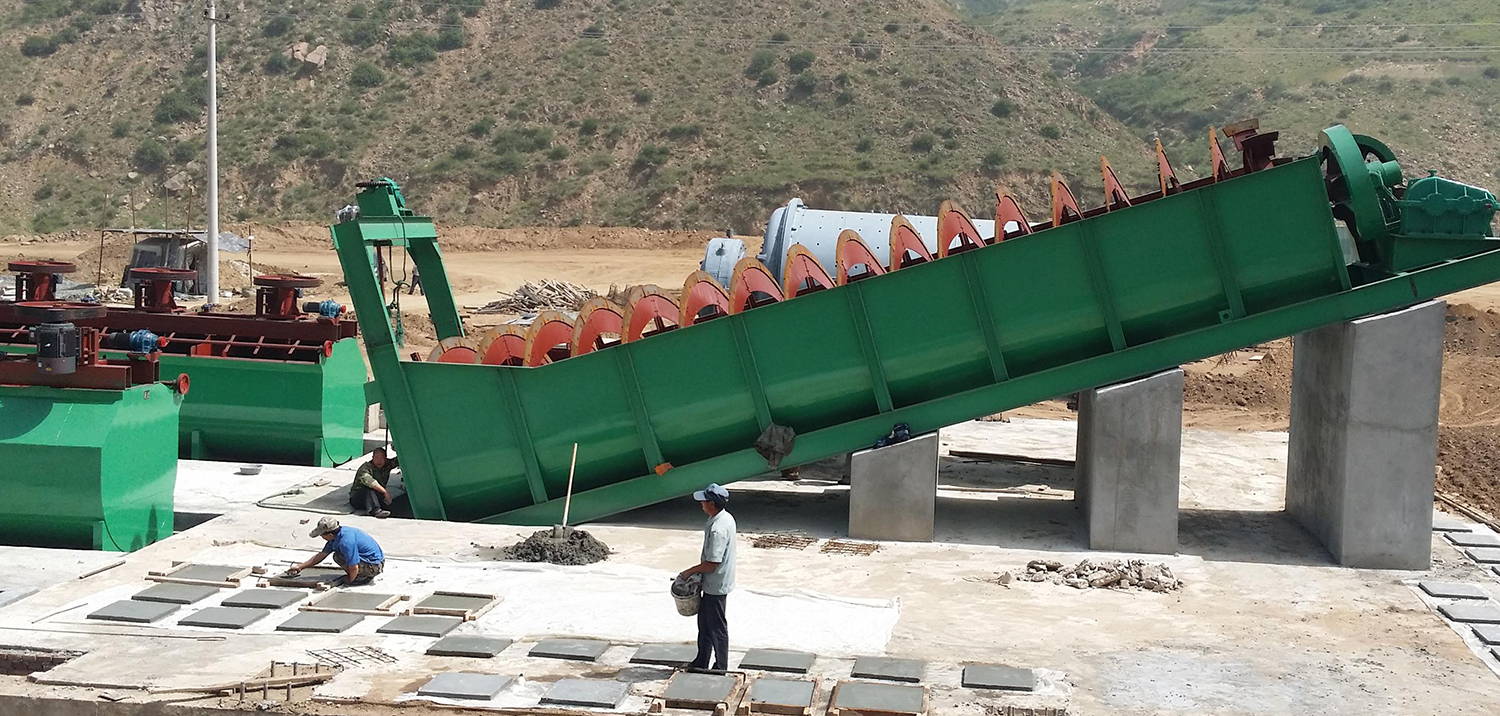

FLG spiral classifier
FLG spiral classifier
Advantage characteristics:
1. The blades are cut automatically, neat and beautiful, and the lubricating parts are improved. Large-scale products are equipped with dry oil pumps, which are reliable in lubrication.
2. The automatic lifting device for sand return is added to the sand return end, and the configuration of the large spoon head of the ball mill is cancelled.
3. Avoid frequent overhaul of big spoon head and slow down the uneven impact on big and small gears of ball mill.
working principle:
The milled pulp is fed into the flume from the inlet and outlet in the middle of the subsidence area. Under the inclined installation flume is the slurry grading subsidence area. The spiral rotation at low speed can mix the pulp, suspend the fine particles to the top and overflow the overflow weir. Coarse particles sink to the bottom of the trough and are spirally conveyed to the discharge outlet for sand return. The position of overflow weir is higher than the bearing center of the lower end of spiral shaft and lower than the spiral upper edge of overflow end. The automatic lifting device for sand return is added to the sand return end, which can cancel the configuration of the large spoon head of the ball mill and make the ball mill run more smoothly.。

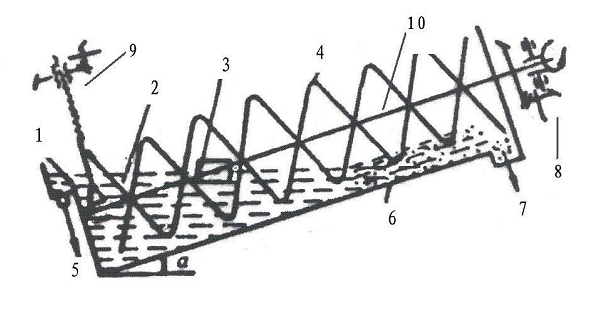

1——Overflow side weir 2——pulp 3——Feed port 4——screw
5——overflow 6——Water tank 7——Sand returning 8——Transmission
9——Lifting device 10——Helix axis
Technical Parameters:
|
Technical parameter table of FLG screw classifier |
||||||||||||||
|
類型 |
型號 |
規(guī)格 |
螺旋直徑（mm） |
螺旋轉(zhuǎn)速（r/min） |
水槽 water |
傾斜角 angle |
生產(chǎn)能力 worker |
傳動電動機 driving motor |
提升電動機 lift motor |
重量（kg） |
||||
|
TYpe |
model |
specifi-cations |
spiral dia |
spiral speed |
長 lengh（mm） |
寬 width（mm） |
（°dip ’） |
Overflow |
Sand returning volume |
Model |
power（kw） |
Model |
power（kw） |
weight |
|
高堰式 單螺旋 high weir single screw |
FLG-5 |
φ500 |
500 |
10.5 |
4500 |
555 |
14°～18°30' |
32 |
143-261 |
Y90L-6 |
1.1 |
手動 |
- |
1600 |
|
FLG-7 |
φ700 |
700 |
6.6 |
5500 |
830 |
14°～18°30' |
65 |
256-564 |
Y132S-6 |
3 |
手動 |
- |
2900 |
|
|
FLG-10 |
φ1000 |
1000 |
5 |
6500 |
1112 |
14°～18°30' |
85 |
473-1026 |
Y132M2-6 |
5.5 |
手動 |
- |
4400 |
|
|
FLG-12 |
φ1200 |
1200 |
6 |
6500 |
1372 |
14°～18°30' |
155 |
1170-160 |
Y132M2-6 |
5.5 |
Y90L-4 |
1.5 |
8800 |
|
|
FLG-15 |
φ1500 |
1500 |
5.5，4.6 |
8265 |
1664 |
14°～18°30' |
235 |
1140-2740 |
Y160M-6 |
7.5 |
Y100L1-4 |
2.2 |
11680 |
|
|
FLG-20 |
φ2000 |
2000 |
3.6，5.5 |
8400 |
2200 |
14°～18°30' |
400 |
3890-5940 |
Y160L-6/4 |
11/15 |
Y100L2-4 |
3 |
20450 |
|
|
FLG-24 |
φ2400 |
2400 |
3.6 |
9130 |
2600 |
14°～18°30' |
580 |
6900 |
Y160L-4 |
15 |
Y100L2-4 |
3 |
25650 |
|
|
FLG-30 |
φ3000 |
3000 |
3.2 |
12500 |
3200 |
14°～18°30' |
890 |
11650 |
Y200L2-6 |
22 |
Y113M-4 |
4 |
37000 |
|
|
高堰式 雙螺旋 high weir double screw |
2FLG-12 |
φ1200 |
1200 |
6 |
6500 |
2600 |
14°～18°30' |
310 |
2340-3200 |
Y132M2-6 |
5.5*2 |
Y90L-4 |
1.5*2 |
15840 |
|
2FLG-15 |
φ1500 |
1500 |
2.5，4.6 |
8250 |
3200 |
14°～18°30' |
470 |
2280-5480 |
Y160M-6 |
7.5*2 |
Y100L-4 |
2.2*2 |
22100 |
|
|
2FLG-20 |
φ2000 |
2000 |
3.6，5.5 |
8400 |
4280 |
14°～18°30' |
800 |
7780-11880 |
Y160L-6/4 |
11*2 15*2 |
Y100L2-4 |
3*2 |
36400 |
|
|
2FLG-24 |
φ2400 |
2400 |
3.67 |
9130 |
5100 |
14°～18°30' |
1160 |
13600 |
Y240L-4 |
30 |
Y100L2-4 |
3*2 |
42874 |
|
|
2FLG-30 |
φ3000 |
3000 |
3.2 |
12500 |
6300 |
14°～18°30' |
1785 |
23300 |
Y225M-4 |
45 |
Y112M-4 |
4*2 |
73030 |
|
|
沉沒式 單螺旋 immerged single screw |
FLC-10 |
φ1000 |
1000 |
5 |
8400 |
1112 |
14°～18°30' |
75 |
473-1026 |
Y132M2-6 |
5.5 |
手動 |
- |
6000 |
|
FLC-12 |
φ1200 |
1200 |
5，6，7 |
8400 |
1372 |
14°～18°30' |
120 |
1170-1630 |
Y160M-6 |
7.5 |
Y100L1-4 |
2.2 |
11020 |
|
|
FLC-15 |
φ1500 |
1500 |
2.5，4，6 |
10500 |
1664 |
14°～18°30' |
185 |
1140-2740 |
Y160M-6 |
7.5 |
Y100L1-4 |
2.2 |
15340 |
|
|
FLC-20 |
φ2000 |
2000 |
3.6，5.5 |
12900 |
2200 |
14°～18°30' |
320 |
3890-5940 |
Y160L-6/4 |
11/15 |
Y100L2-4 |
3 |
29060 |
|
|
FLC-24 |
φ2400 |
2400 |
3.6 |
11130 |
2600 |
14°～18°30' |
455 |
6800 |
Y180M-4 |
18.5 |
Y112M-4 |
4 |
37267 |
|
|
FLC-30 |
φ3000 |
300 |
3.2 |
14300 |
3200 |
14°～18°30' |
705 |
11650 |
Y200L-4 |
30 |
Y112M-4 |
4 |
43500 |
|
|
高堰式 雙螺旋 high weir double screw |
2FLC-12 |
φ1200 |
1200 |
6 |
8400 |
2600 |
14°～18°30' |
240 |
1770-2800 |
Y160M-6 |
7.5*2 |
Y90L-4 |
1.5*2 |
19610 |
|
2FLC-15 |
φ1500 |
1500 |
2.5，4，6 |
10500 |
3200 |
14°～18°30' |
370 |
2280-5480 |
Y160M-6 |
7.5*2 |
Y100L2-4 |
2.2*2 |
27450 |
|
|
2FLC-20 |
φ2000 |
2000 |
3.6，5.5 |
12900 |
4280 |
14°～18°30' |
640 |
7780-11880 |
Y160L-6/4 |
11*2 15*2 |
Y100L2-4 |
3*2 |
50000 |
|
|
2FLC-24 |
φ2400 |
2400 |
3.6 |
11130 |
5100 |
14°～18°30' |
910 |
13700 |
Y225S-4 |
30 |
Y112M-4 |
4*2 |
65283 |
|
|
2FLC-30 |
φ3000 |
3000 |
3.2 |
14300 |
6300 |
14°～18°30' |
1410 |
23300 |
Y225M-4 |
45 |
Y112M-4 |
4*2 |
84870 |
|
