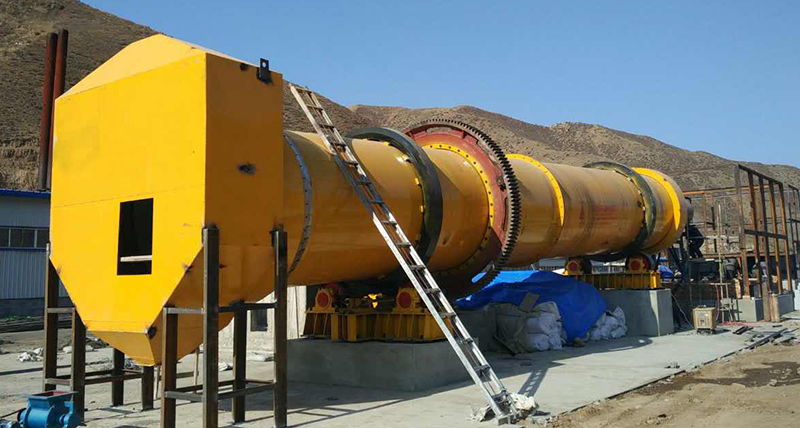

HT drum dryer
HT drum dryer
Advantage characteristics:
1. The equipment can be continuously fed and dried, or intermittently fed.
2, easy to operate, the dryer speed, blank angle adjustment is easy. The dryer is driven and the parking operation is very simple and does not require special process control equipment.
3. Drying mainly with conduction heat, large drying area, high thermal efficiency and low energy consumption.
4. The material is evenly dried and the quality is stable. The material flows in the drum as the drum rotates and does not clog.
working principle:
The material is fed into the cylinder from the feeding end, and the spiral blade is quickly pushed to the hot air duct. Due to the inclination and rotation of the body, combined with the action of the hot air duct and the fan, the material is continuously taken up in the circumferential direction, thrown away and made longitudinal Movement, intense heat exchange with the high temperature medium entering the cylinder at the same time, so that the material can be dried.

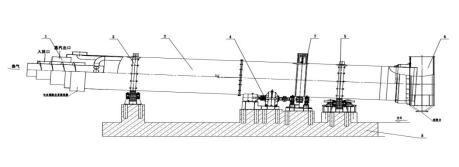

1. Feeding part 2. Support part (front) 3. Rotating body 4. Transmission device 5. Supporting part (rear) 6. Discharging part 7. Gear cover part 8. Foundation part
Technical Parameters:
Selection instructions: Other products can be designed and manufactured according to different requirements of users.
|
Rotary dryer technical reference table |
||||||||||
|
型號 |
規格 |
筒體轉速（r/min) |
電機型號 |
電機功率(KW) |
重量 |
|||||
|
Model |
Specifications |
Rotationspeed of the drum |
Motor Model |
Motor Power |
Weight |
|||||
|
HT-1210 |
φ1200*10000 |
1.02-10.2 |
YCT225-4B |
15 |
8485 |
|||||
|
HT-1512 |
φ1500*12000 |
1.02-10.2 |
YCT225-4B |
15 |
11420 |
|||||
